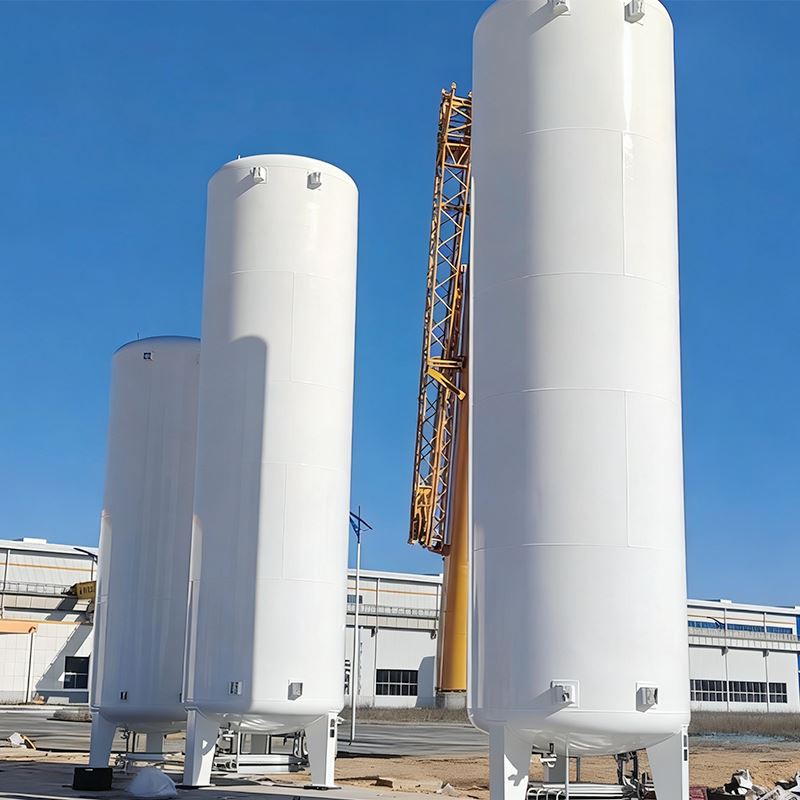

Liquid Argon Cryogenic Storage Tank

The Liquid Argon Storage Tank is used for the low-temperature centralized storage and stable supply of liquid argon (Ar). It is suitable for applications in air separation units, metallurgy, welding shielding gases, and high-purity gas industries. The tank features a cryogenic storage structure, ensuring safe and sealed storage of liquid argon with smooth vaporization, while minimizing the impact of supply-demand fluctuations on system operation. The tank's volume, structural design, pressure and temperature specifications, material selection, and insulation method can be customized based on operational conditions, and monitoring interfaces for liquid level, pressure, and temperature can be included. Manufacturing and inspection are conducted in accordance with relevant standards and contract requirements, ensuring long-term stable operation and successful project delivery for industrial gas systems.

The Liquid Argon Storage Tank is used for the centralized storage, temporary storage, and stable supply of liquid argon (Ar), widely applied in air separation units, steel metallurgy, welding shielding gas systems, electronics and semiconductor manufacturing, metal processing, scientific research, and various industrial scenarios requiring high-purity inert gases.

The core function of the liquid argon storage tank is to establish a safe and reliable cryogenic storage and buffer point between the liquid argon production or receiving end and the downstream gas-consuming end. This enables long-term sealed storage, smooth vaporization, and stable gas supply, providing a continuous or intermittent source of stable gas for systems requiring consistent gas supply.

In a typical system, liquid argon is sourced from by-product production in air separation units, purchased from tanker trucks, or from centralized gas supply stations. The liquid argon is then transported through cryogenic pipelines to storage tanks, and subsequently vaporized and supplied to downstream systems. Since downstream gas demand fluctuates with production schedules, equipment start/stop cycles, and process changes, the lack of suitable buffer storage can lead to frequent fluctuations in the vaporization system's load, resulting in unstable supply pressure, frequent valve operation, and even interruptions in gas supply. With the installation of a liquid argon storage tank, an effective buffer is formed between supply and consumption: when supply is sufficient, excess liquid argon is stored, and when downstream demand rises or upstream supply is temporarily interrupted, the stored argon is released and vaporized for supply, achieving peak shaving and valley filling, thus stabilizing system operation. The role of the liquid argon storage tank is especially crucial in applications where gas purity and supply continuity are of high importance.

Overall, the liquid argon storage tank provides a safe and reliable foundation for the production, storage, and utilization of liquid argon through cryogenic sealed storage, pressure buffering, and smooth vaporization. By customizing the design based on the scale of liquid argon usage, supply-demand fluctuations, vaporization methods, and site layout and safety requirements, a rational decision on tank volume, structural design, insulation plan, and interface configuration can be made. Adhering strictly to manufacturing inspection and delivery control ensures that the liquid argon storage tank maintains stable and reliable performance in long-term operation, meeting the continuous, safe, and efficient operation and project delivery requirements of industrial gas systems.

Equipment Name: Liquid Argon Storage Tank
Working Medium: Liquid Argon (Ar)
Volume: Designed based on storage and gas supply requirements / customizable
Structure: Vertical / Horizontal Cryogenic Tank (commonly double-layer structure)
Design Pressure: Customized according to system requirements
Design Temperature: Cryogenic conditions (customized based on system requirements)
Material: Cryogenic materials (selected based on project requirements, customizable)
Insulation Method: Vacuum insulation / high-efficiency insulation materials
Interface Configuration: Liquid inlet, liquid outlet, gas phase outlet, return/vent outlet (as per design), drain outlet, vent outlet, sampling port
Instrumentation Interfaces: Liquid level, pressure, and temperature interfaces (configured as per monitoring and interlock needs)
Manufacturing & Inspection: Conducted in accordance with relevant standards and contractual specifications

Factory Documentation (Scope as per contract):
Product qualification documents, material certificates, inspection/test records, non-destructive testing reports, factory list, packing list, etc.
Transportation & Packaging Protection:
All openings will be sealed before shipment. During transport, special care will be taken to protect the insulation layer and cryogenic interfaces, ensuring protection from rain, dust, and impact.
Installation & Technical Support:
Provide advice on foundation conditions and interface connections. Technical support will be provided during on-site installation, positioning, connection, and pre-commissioning inspections.
